WINDS — WEATHER INTELLIGENCE SYSTEM

Continuous Environmental Monitoring. Zero Compromise on Reliability.

WINDS (Weather Intelligence and Networked Data Systems) stations are engineered for unattended operation in real-world conditions — delivering accurate, real-time weather data across agricultural, urban, and industrial environments.

WINDS stations measure 10+ environmental parameters — temperature, humidity, wind speed, rainfall, soil moisture, and more — in real time. Solar-powered and designed for remote operation, they transmit data via GPRS, Wi-Fi, or LoRa.

10+ Weather Parameters Solar-Powered GPRS / Wi-Fi / LoRa Real-Time Data

Request a Quote arrow_right_alt

Review the rainfall and wind sensor calibration results in our IMD laboratory test reports.

Wind measurement instruments mounted outdoors

Technical Specifications

Rainfall and wind entries below describe the specific instruments documented in the linked IMD laboratory reports. Confirm the sensor configuration for your deployment with our team.

Parameters Measured

Parameter	Sensor Type	Specifications / Calibration
Air Temperature	PT100 / NTC	±0.3°C
Relative Humidity	Capacitive	±2% RH
Wind Speed	Ultrasonic anemometer (GPUA-V0726)	Calibrated range: 0–52.0 m/s. Point-specific corrections: −0.1 to −0.7 m/s; see IMD report 8331.
Wind Direction	Ultrasonic anemometer (GPUA-V0726)	Within ±2° tolerance in the reported wind-tunnel test at 10 m/s.
Rainfall	Tipping bucket (GPTBRG-V0726)	Resolution: 0.2 mm/tilt. Reported errors: −3.3% to +1.6% at the tested intensities; see IMD report 8330.
Barometric Pressure	Piezoresistive	±0.5 hPa
Solar Radiation	Pyranometer	±5%
Soil Temperature	PT100	±0.5°C
Soil Moisture	Capacitive FDR	±3% VWC
Leaf Wetness	Conductivity-based	Binary / analog

Connectivity Options

wifi GPRS (SIM-based, 2G/3G)
wifi Wi-Fi (local network)
signal_cellular_alt LoRa (long-range, low-power)
satellite_alt Optional: Satellite backup

Power & Physical

Solar-powered with battery backup
72+ hours autonomous operation
IP65+ weatherproof enclosure
Operating: -20°C to +60°C

Data Platform

Configurable reporting (1-60 min)
Cloud dashboard visualization
API access for integration
Alert thresholds & notifications

SENSOR CALIBRATION DOCUMENTATION

IMD Laboratory Test Reports

Review the India Meteorological Department (IMD), Surface Instruments Division, Pune laboratory reports for the tipping bucket rain gauge and ultrasonic anemometer. Both reports identify the make and calibration customer as Gujranwala Projects.

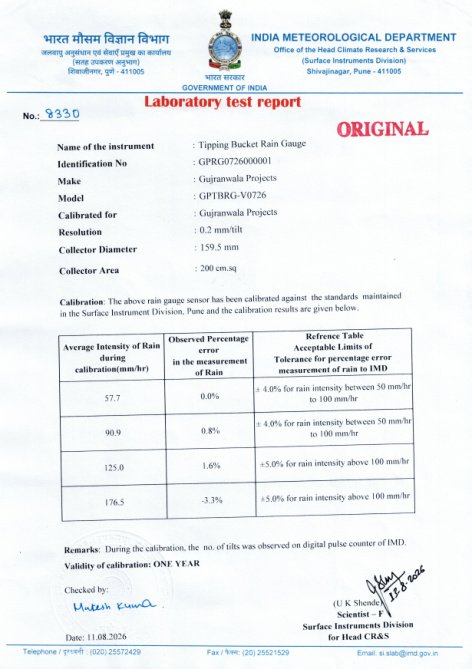

REPORT NO. 8330 · 11 AUGUST 2026

Tipping Bucket Rain Gauge

Model: GPTBRG-V0726
Resolution: 0.2 mm/tilt
Collector diameter: 159.5 mm
Collector area: 200 cm²

Observed rainfall measurement errors range from −3.3% to +1.6% across the four tested intensities, from 57.7 to 176.5 mm/hr.

The report lists IMD reference tolerances of ±4% at 50–100 mm/hr and ±5% above 100 mm/hr. These are intensity-specific tolerances.

Calibration validity stated in the report: one year.

View Rain Gauge PDF Download report

Original PDF · 11.2 MB · 1 page

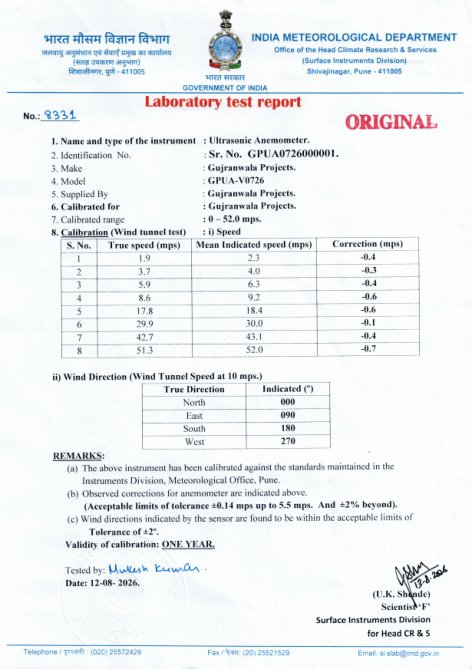

REPORT NO. 8331 · 12 AUGUST 2026

Ultrasonic Anemometer

Model: GPUA-V0726
Calibrated speed range: 0–52.0 m/s
Direction test speed: 10 m/s
Direction tolerance: Within ±2° in the reported test

The wind-tunnel report records eight speed calibration points, with corrections from −0.1 to −0.7 m/s. Consult the PDF for the correction at each test point.

North, east, south and west indicate 000°, 090°, 180° and 270°, respectively. The report states that wind direction is within the acceptable ±2° tolerance.

Calibration validity stated in the report: one year.

View Anemometer PDF Download report

Original PDF · 11.6 MB · 1 page

These laboratory reports apply to the individual instruments identified in the PDFs. They document calibration results, not certification of a complete WINDS station. Refer to the original reports for instrument identification, test conditions and calibration details.

Use Cases & Applications

agriculture

Agricultural Monitoring

District-level crop management, irrigation scheduling, frost warning, pest outbreak prediction.

location_city

Smart City / Urban

Urban heat island mapping, traffic weather integration, public space monitoring, emergency response support.

factory

Industrial / Infrastructure

Construction site monitoring, mining operations, wind farm assessment, airport weather systems.

Agricultural landscape viewed from above

CASE STUDY

20+ Stations Across Punjab — Operational Data in Real Time

Pravix deployed a network of WINDS stations across multiple locations in Punjab, covering agricultural zones and urban environments. The stations have been operational through monsoons, extreme heat, and winter conditions — transmitting uninterrupted data via GPRS to a central monitoring platform.

99.2%

Uptime across deployment

Real-time

Dashboard and mobile access to all station data

12+ months

No field maintenance required at majority of sites

CPS LAB-IN-A-BOX

A Complete Cyber-Physical Systems Laboratory. Shipped to Your Campus.

Everything your institution needs to deliver hands-on IoT and embedded systems education — curriculum, hardware, software, and trainer support — in a single, self-contained package.

Developed in collaboration with IIT Ropar's AWaDH initiative and supported by the Government of India's DPIIT, CPS Lab-in-a-Box brings hands-on IoT education to engineering institutions without the infrastructure overhead.

Pre-Built Curriculum DPIIT Funded Live at 7 NITs Faculty Training

Request a Quote arrow_right_alt

What's Inside Each Lab

memory

Hardware Kit

Development boards (Arduino, ESP32, STM32)
Sensor modules (temp, humidity, motion, light, gas, ultrasonic)
Actuators (motors, relays, servos, buzzers)
Communication modules (Wi-Fi, LoRa, Bluetooth, Zigbee)
Breadboard, wiring, power supplies
Custom Pravix sensorPCB for CPS experiments

code

Software Stack

Pre-configured IDE environments
IoT cloud platform access
Data logging and visualization tools
Simulation tools for firmware development

menu_book

Curriculum

12+ structured lab exercises
Project-based modules (basic to advanced)
Faculty training manual
Student workbook with solutions

support_agent

Support

3-day on-site faculty training
Remote technical support during academic year
Curriculum updates as technology evolves

Already Live at India's Top Engineering Institutions

Funded by Academic Weather and Data Hub (AWaDH), IIT Ropar — under DPIIT-supported initiative.

Institution	Location	Year	Status
NIT Delhi	New Delhi	2024	Active
NIT Jalandhar	Punjab	2024	Active
NIT Kurukshetra	Haryana	2024	Active
NIT Hamirpur	Himachal Pradesh	2023	Active
NIT Mizoram	Aizawl	2023	Active
NIT Nagaland	Dimapur	2023	Active
NIT Uttarakhand	Garhwal	2024	Active

Interested in Our Products?

Get in Touch arrow_forward

DESHBOT AI KIT / EDGE INTELLIGENCE

Intelligence, closer to where it matters.

Deshbot brings embedded AI hardware into your development workflow. Build and explore intelligent applications that process data at the edge.

Talk to our team about hardware configurations and the requirements of your application.

Explore Deshbot

Electronic hardware and circuit-board components
